mining cart wheel set introduction

the solid steel wheel is mainly used to reduce the friction of the mine car on the ground so that the mining car can be walked. the rail wheel is the same as the bicycle wheel, reduce frictin, so mining car can move safely and quickly, which reduces the wear and tear of the machine and reduces the resistance, which also reduces the manpower. so the life of the underground mining car can be used longer.

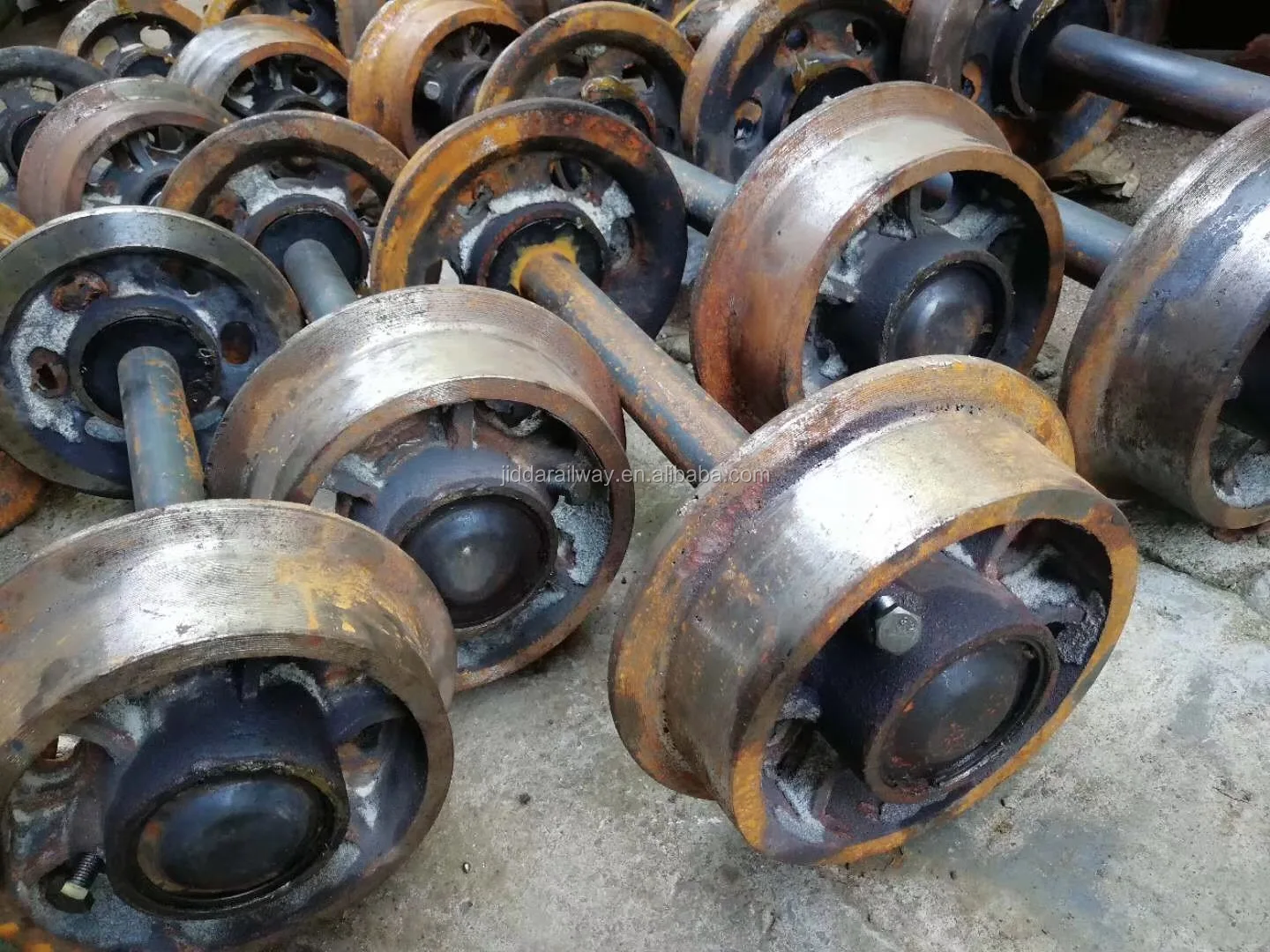

mining cart wheel set details

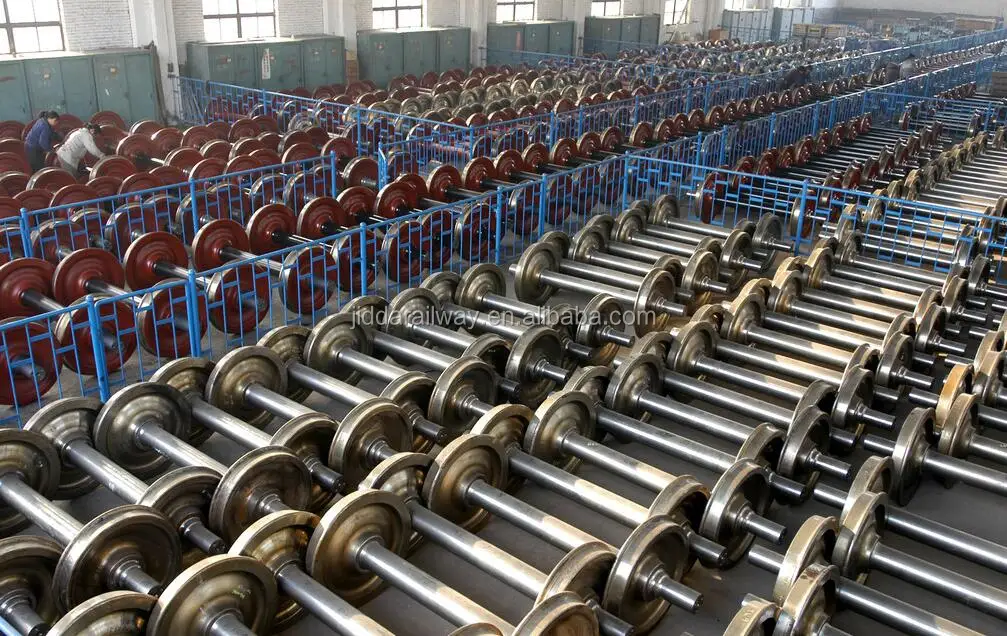

2019 hot sell cast iron ore mining cart wheel set

mining cart wheel set basic information

1. material: cast steel or cast iron;
2. constitute: two wheels, one axle, four bearings, and other parts;

3. loading capacity: 1-25 tons, each one is ok;

4. wheel sets gauge: 600mm, 762mm, 900mm, and etc;

5. the type of the wheels: hollow wheel sets and solid wheel sets;

6. the diameter of the wheels: 300mm, 350mm, 400mm, 450mm;

7. the material of the axle: 45# steel, or q235;

8. the quantity of each wheel's bearing: two;

9. the material of the bearing: lyc32212, conical roller bearing, deep groove ball bearing;

10. weight: 70kg.

mining cart wheel set design

there are strict requirements for the assembly pressure and press-fit process of the axle and the wheel. the inner distance of the mine wheel must be within in 1353±3mm. in order to ensure the smooth operation of the mining vehicles, reduce the wheel-rail interaction force and running resistance, eccentricity of the axle journal and the wheel tread, as well as the journal taper, must not exceed the specified limits.

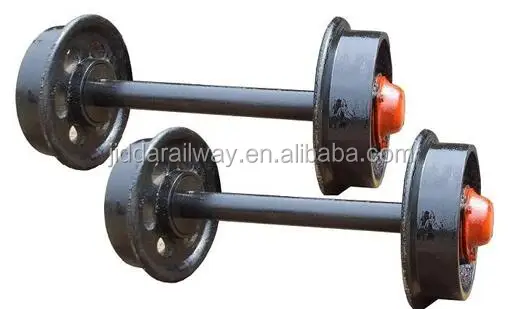

2019 hot sell cast iron ore mining cart wheel set

mining cart wheel set main parameter

model	mine car weight kg	track mm	wheel diameter	max axle distance of wheels	min distance of covers	axle diameter
zbl600/300	≤2400	600	300	808	510	60
zbl762/300		762		970	672
zbl900/300		900		1108	810
zbl600/350	≤6700	600	350	850	490	80
zbl762/350		762		1012	652
zbl900/350		900		1150	790
zbl600/400	≤9000	600	400	870	476	95
zbl762/400		762		1032	638
zbl900/400		900		1170	776
