shuttle mine car introduction
st series underground mining shuttle mine car is mainly used for railway tunnel, hydraulic culvert, such as underground mine roadway and military cavern excavation construction.
shuttle mine car details
 | model definition st(d)-14b s: shuttle car t: universal type d: overlap type 14: loading capacity 14m3 b: anti-explosion model |
shuttle mine car features 1. large volume, structural simplicity,continuous reprint 2. good shock absorption performance, stable operation, not easy to fall; 3. suitable for bending more mechanized storage construction of the tunnel and lane section. |  |

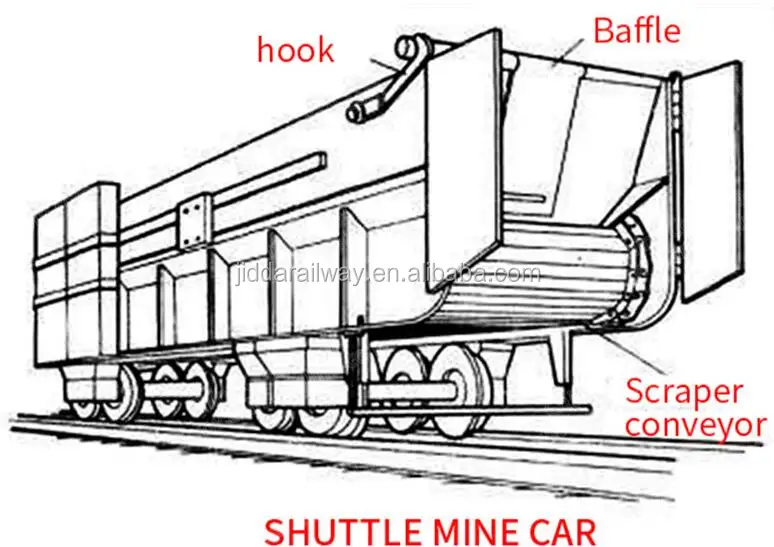

 | shuttle mine car structure large shuttle mine car is mainly with motor vehicles, bucket loader supporting the use of the composition of a high degree of mechanization, large capacity installed ballast tunnel smoke-free driving system. |
shuttle mine car working principles the ore material is loaded from the mounting end of the carriage, and the continuously rotating scraper or chain conveyor automatically reloads the mineral gravel to the unloading end; until the entire shuttle full, the traction motor is towed to the unloading. after the market, and then start the transport machine, you can safely and reliably remove the raft from both sides and automatically remove the mineral stone. |
|
shuttle mine car main parameter
model | st(d)-14b | st(d)-16b | st(d)-20b | st(d)-25b | st(d)-30b | |
volume(m3) | 14 | 16 | 20 | 25 | 30 | |
self weight(t) | 13.6 | 17.8 | 19.84 | 22.6 | 28.8 | |
loading capacity(t) | 28 | 32 | 40 | 50 | 60 | |
track gauge(mm) | 600/762/900 | |||||
min. turning radius(m) | 18 | 20 | 25 | 25 | 30 | |
loading height(m) | 1.45 | 1.52 | 1.53 | 1.7 | 1.73 | |
disassemble time(min) | 2 | 4 | 4 | 4.5 | 4.5 | |
max running speed(km/h) | 15 | |||||
max motor power(kw) | 18.5 | 18.5*2 | 22*2 | 22*2 | 30*2 | |
drive mode | single drive | double drive | ||||
center distance of truck frame(mm) | 5450 | 6250 | 6350 | 7080 | 7250 | |
applicable rail(kg/m) | >=33 | >=33 | >=38 | >=38 | >=43 | |
applicable roadway size(width*height)(m) | 3.4*3.5 | 3.5*4 | 4*4 | 4*4.5 | 5*5.5 | |

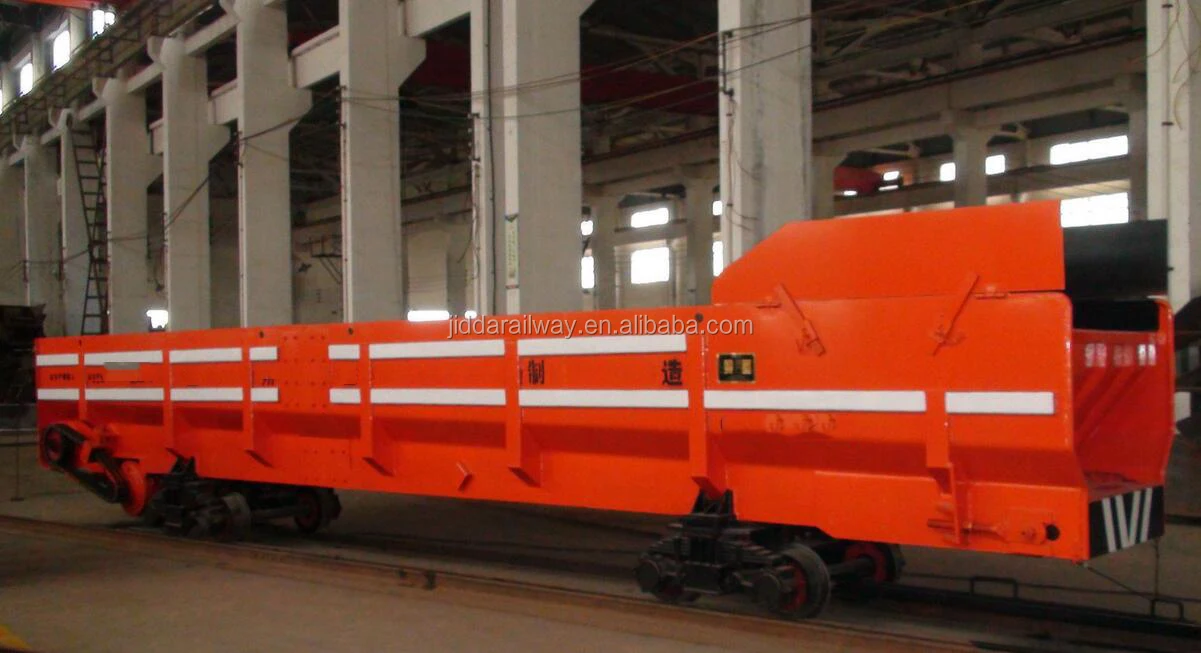

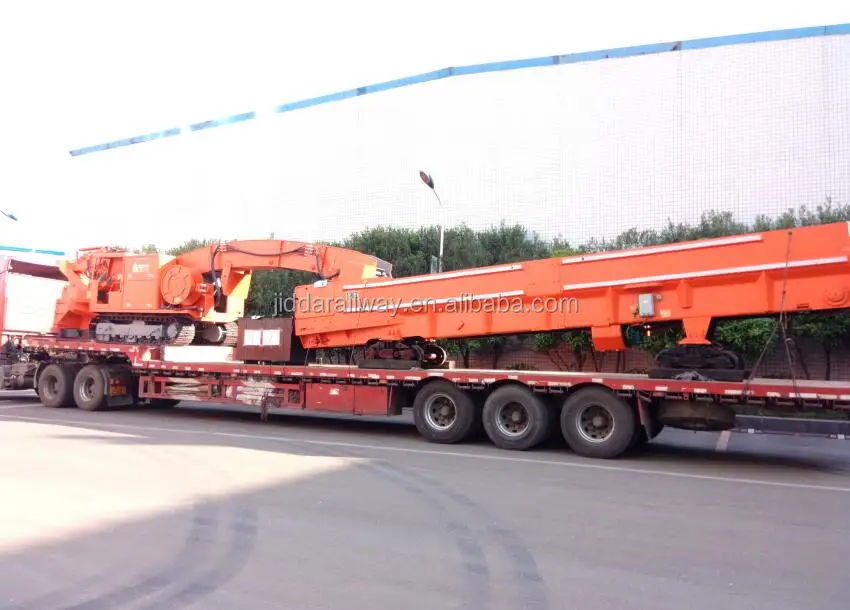

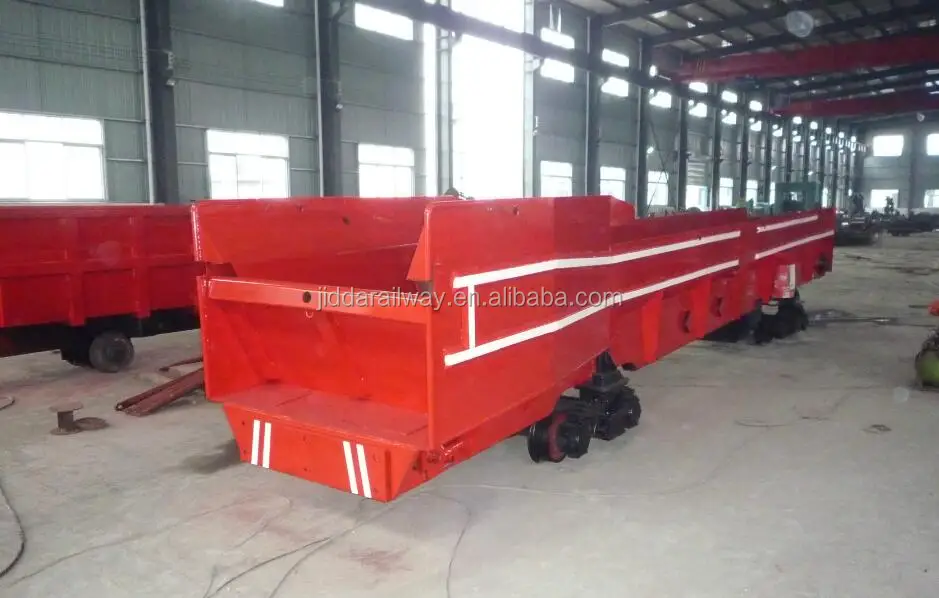

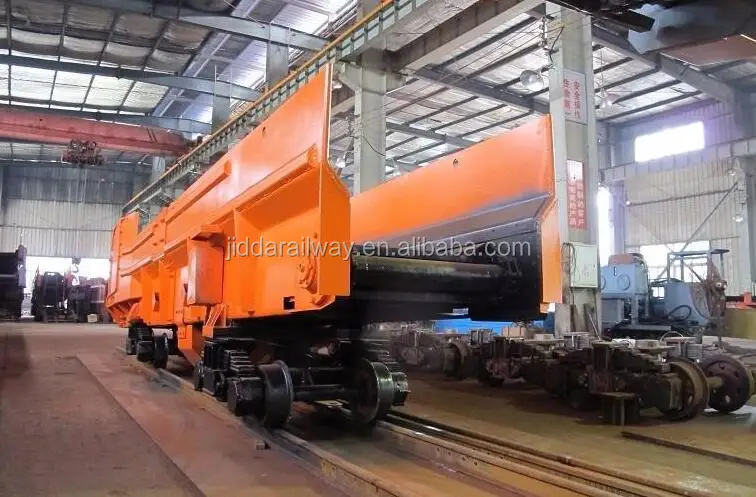

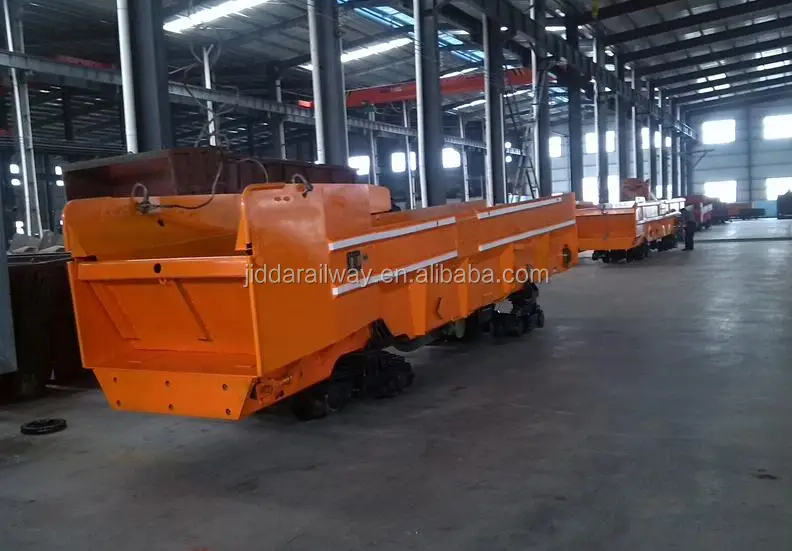

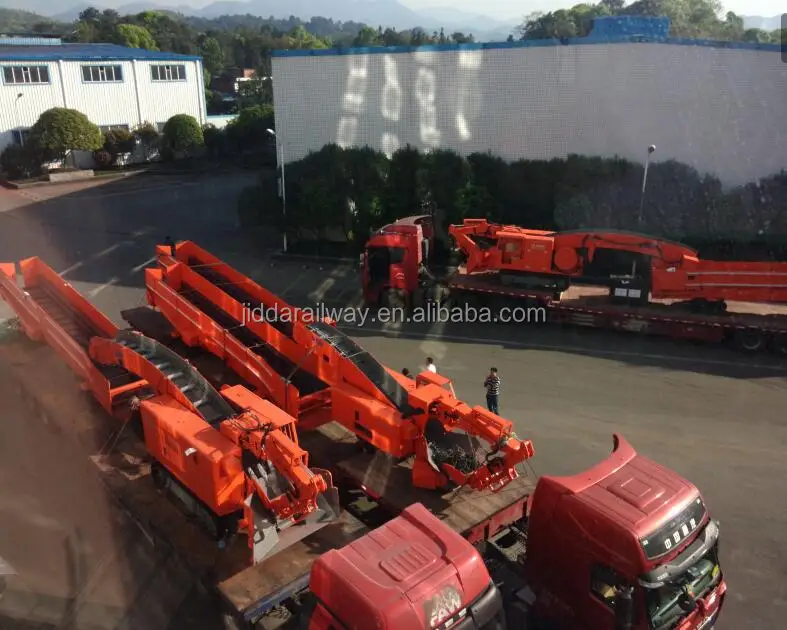

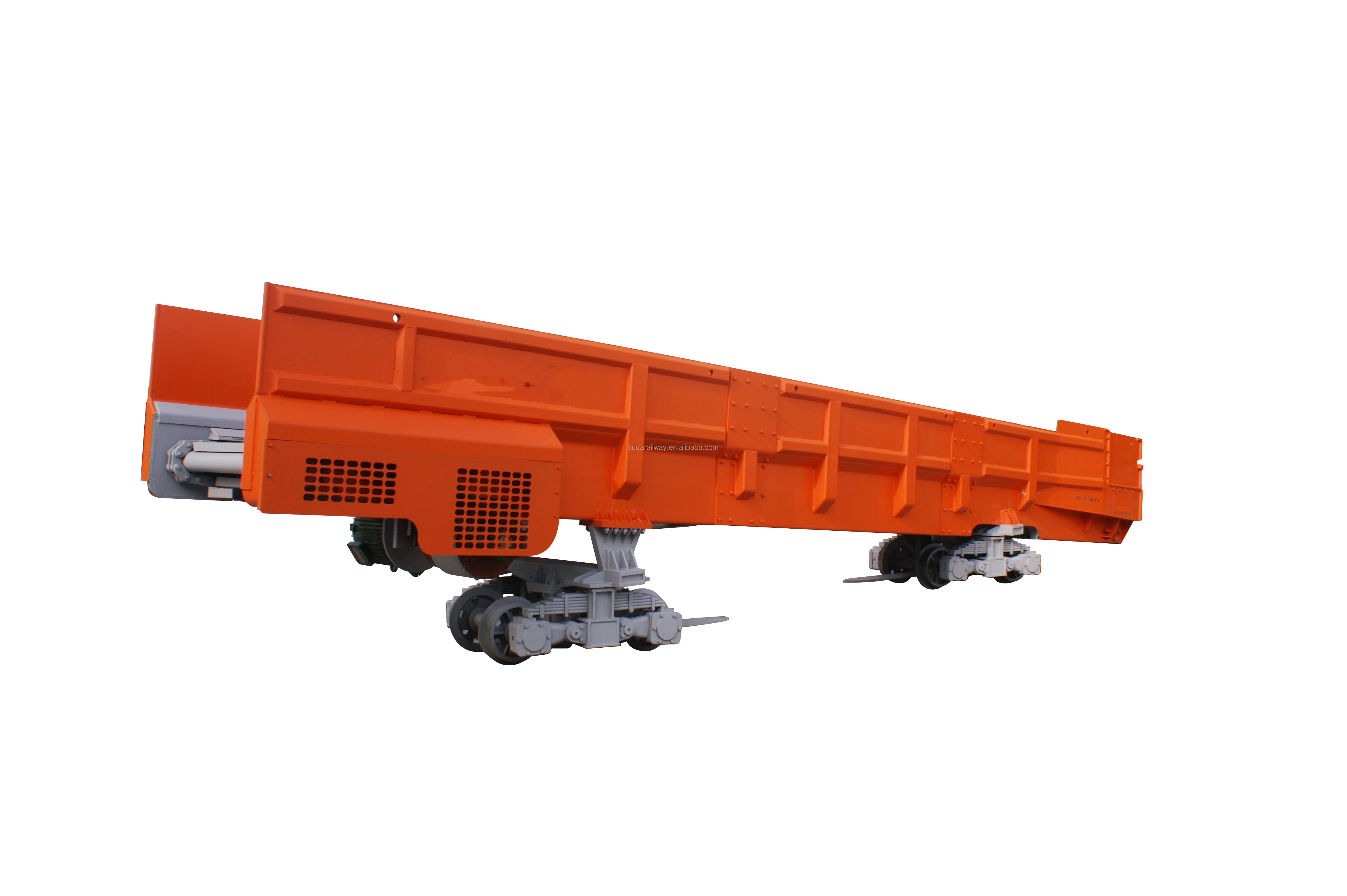

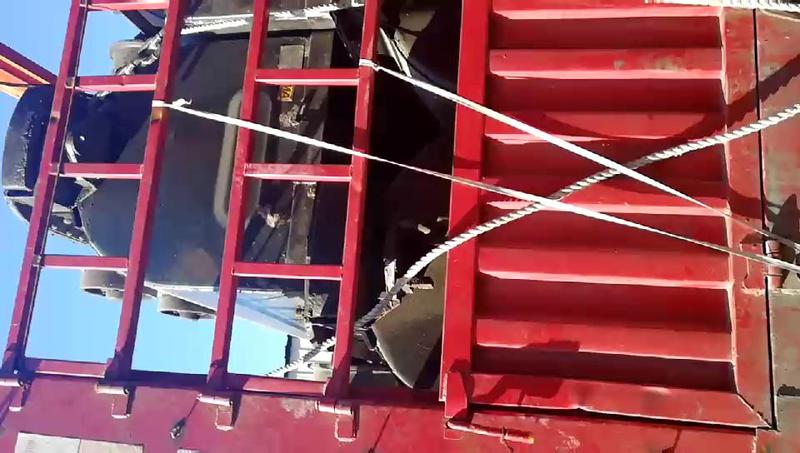

shuttle mine car figure photos
