fixed mine wagon introduction
fixed mine wagon used in the coal mine roadway transportation, large of small and medium- sized inclined shaft, small slope along the groove and the mine ground transportation.
car by car, stationary harvesters - frame, wheel, shock absorber parts, stationary harvesters for coupling or cart baffle. when ordering, please indicate.welcome to contact us to negotiate with us to order products.mines in coal, ore and waste rock material such as narrow gauge railway transport vehicle, usually with winch or locomotive traction.
fixed mine wagon details
 | model definition(mgc3.3-9) m : for coal mine g: fixed model c: car/vehicle 3.3: capacity (m3) 9: gauge 900mm |
flat rail wagon features made by high quality steel high stress area welds eliminated mass and section thickness optimized long service time simplified state of the art mainframe and easy to operate |  |
 | fixed rail wagon application fixed mine cars are suitable for surface and underground of the mine to transport the ore and other waster materials. |
fixed mine wagon structure it is composed of carriage, frame, open wheel set, connection bolt, connection chain, bolt pin, split pin, washer etc. |
|
fixed mine wagon main parameter
model | mgc1.7-6 | mgc1.7-9 | mgc1.1-6 | mgc3.3-9 |
volume(m³) | 1.7 | 1.7 | 1.1 | 3.3 |
theoretical capacity (t) | 1.5 | 1.5 | 1.1 | 3 |
max. load (t) | 2.7 | 2.7 | 1.8 | 3 |
gauge(mm) | 600 | 900 | 600 | 900 |
wheel base(mm) | 750 | 600 | 550 | 1100 |
wheel diameter (mm) | 300 | 350 | 300 | 350 |
traction(kn) | 60 | 60 | 60 | 60 |
traction height(mm) | 320 | 320 | 320 | 320 |
overall size(lxwxh) | 2400*1050*1200 | 2100*1150*1300 | 2000*880*1150 | 3450*1320*1300 |
weight(≤kg) | 720 | 970 | 610 | 1320 |

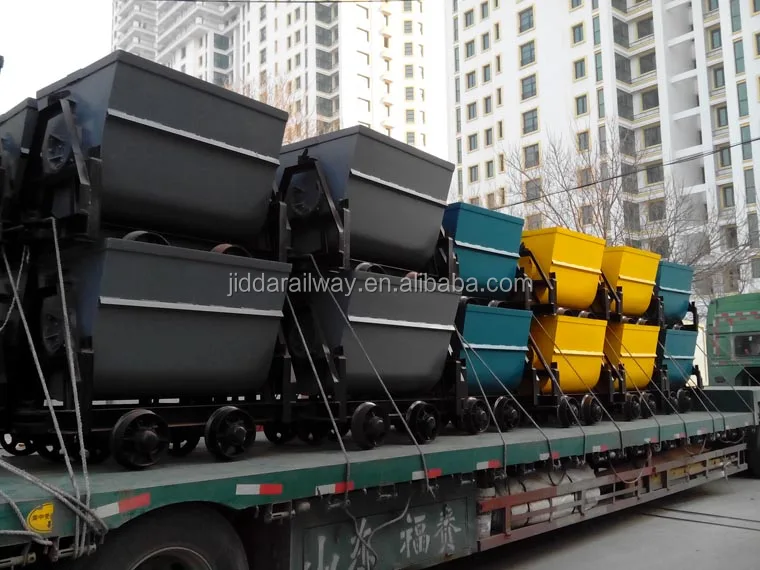

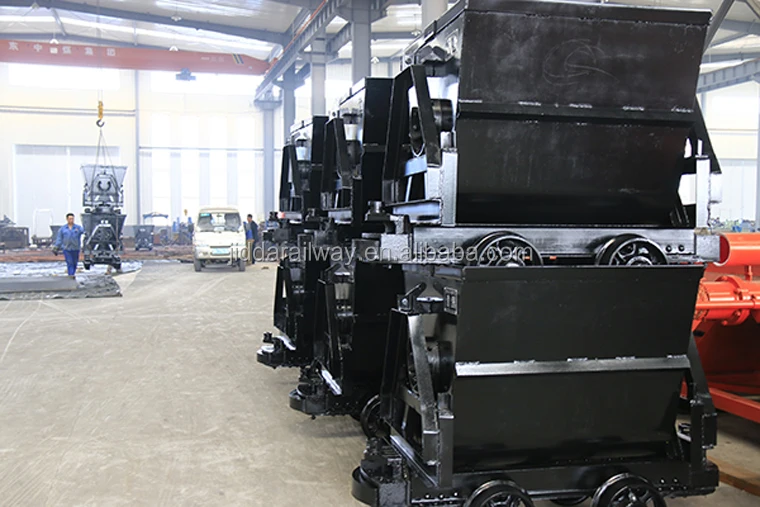

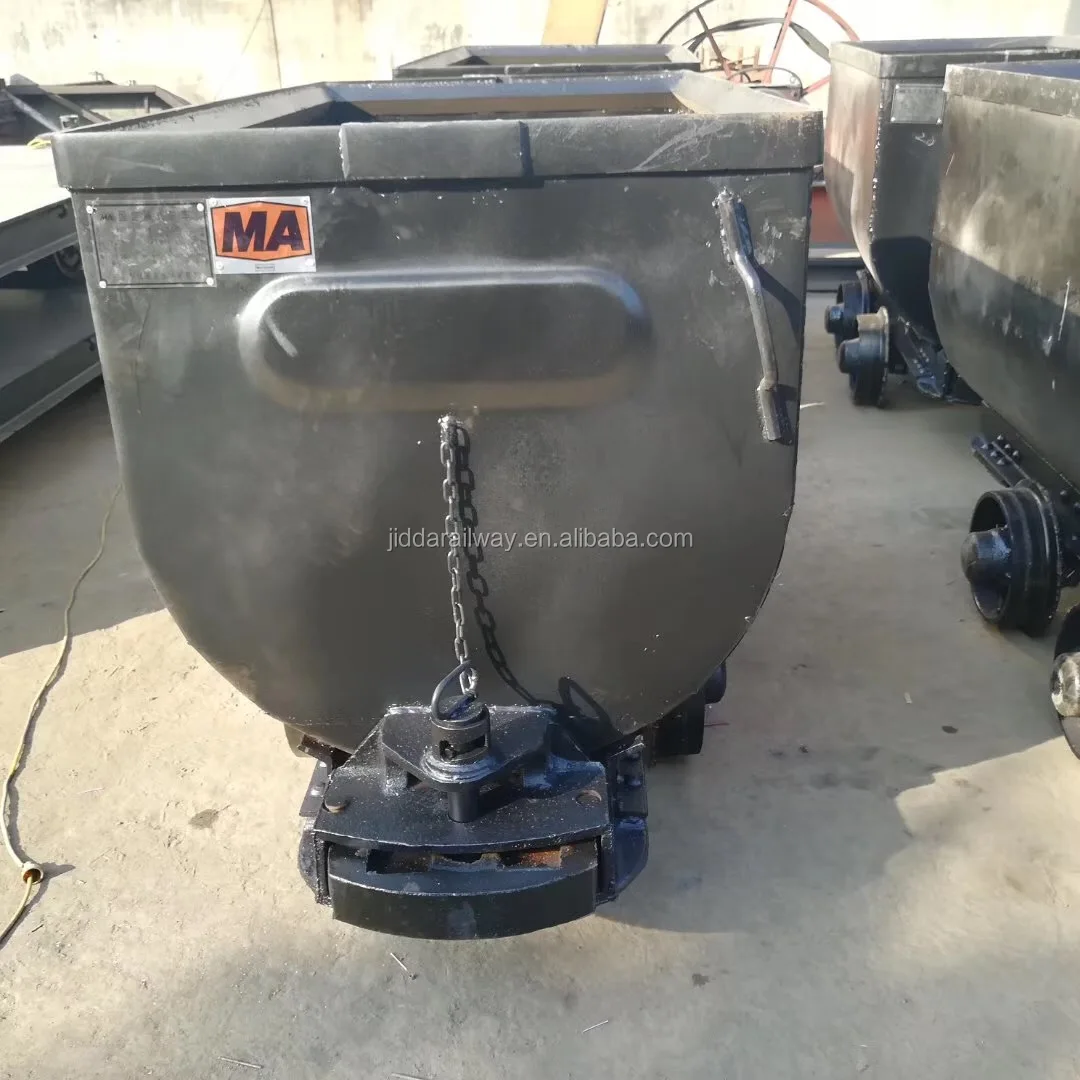

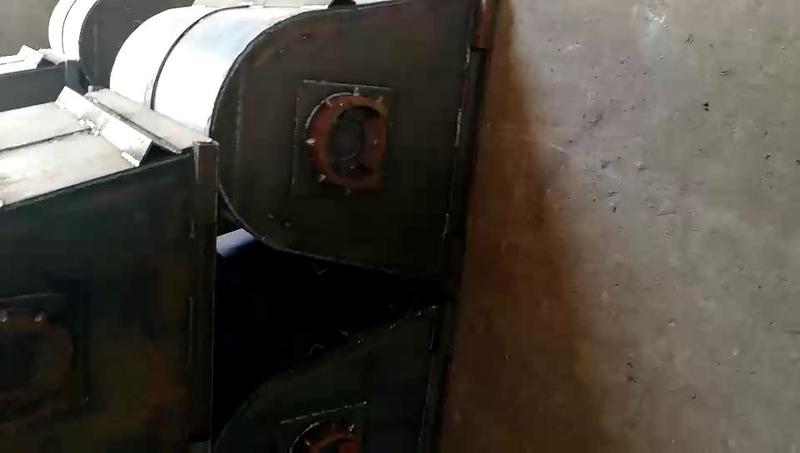

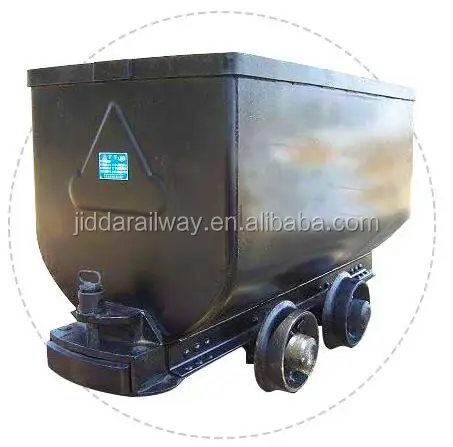

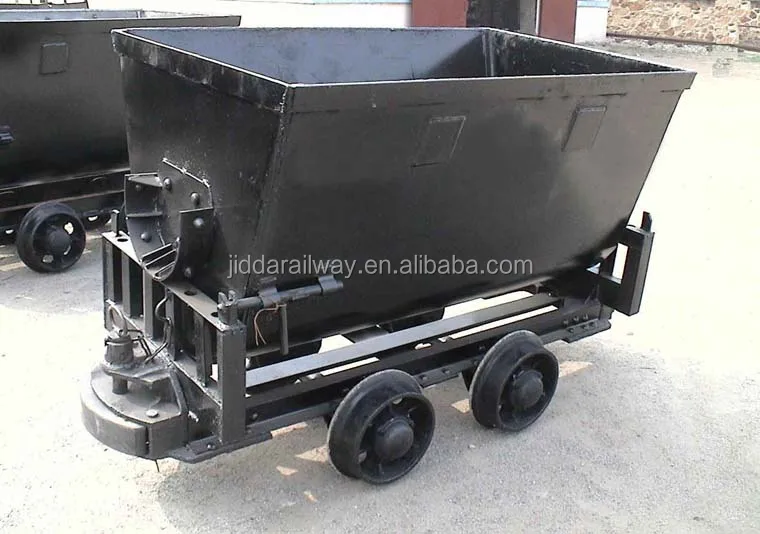

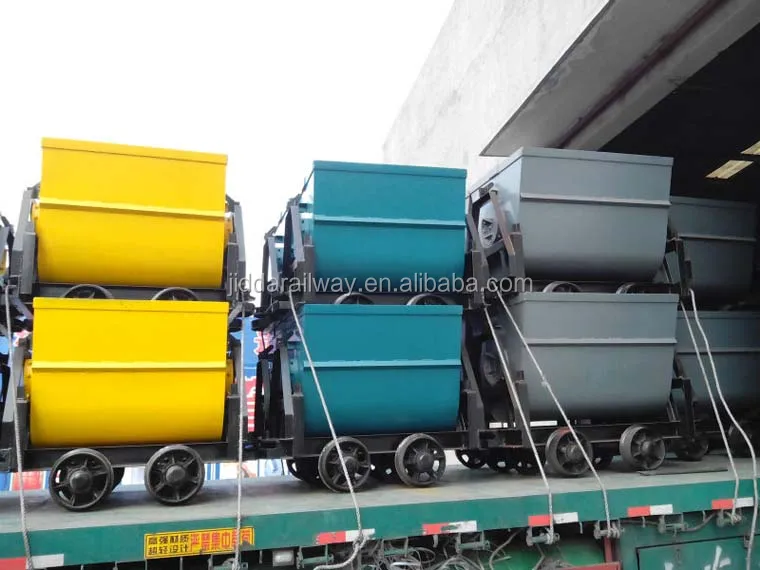

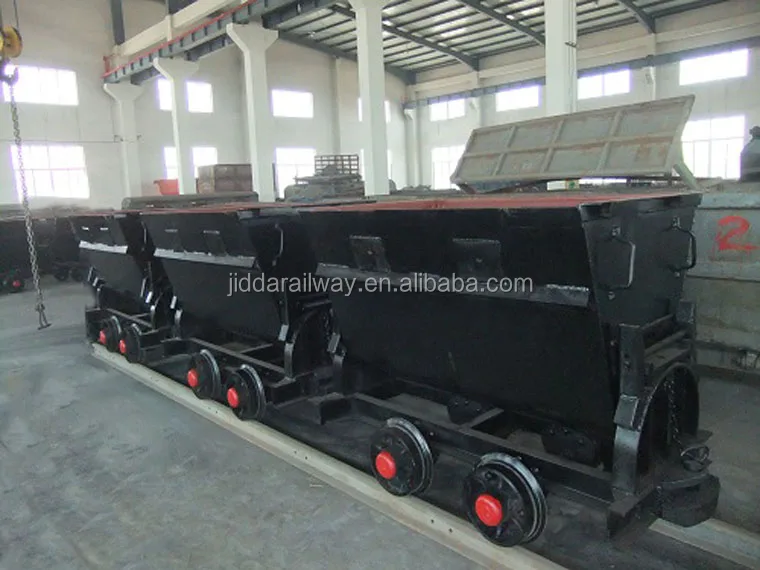

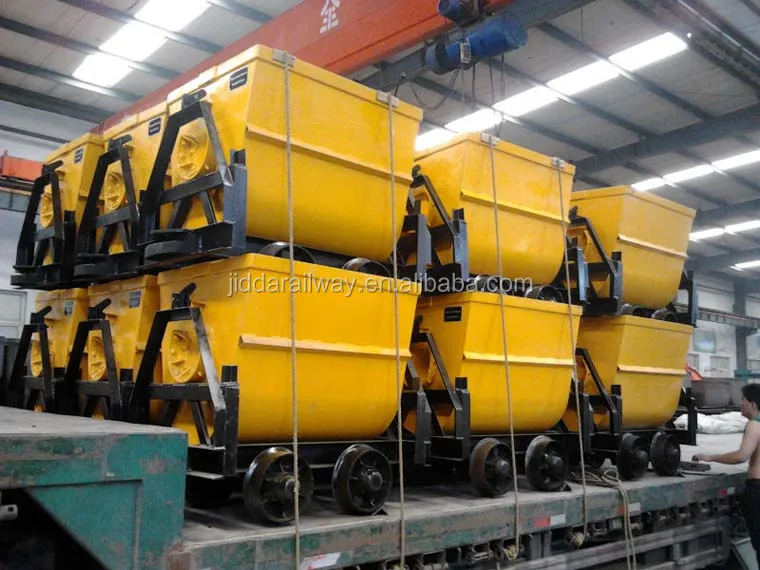

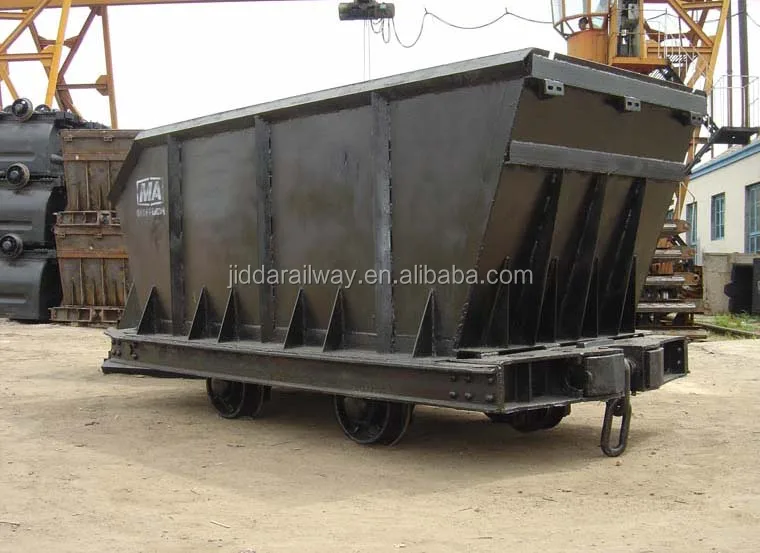

fixed mine wagon figure photos
faq
q1: are you trading company or manufacturer ?
a: we are a manufacturere with 7 branch factories and 6 overseas offices.
q2: how long is your delivery time?
a: generally, within 15-25 days after deposit received.
q3: can we visit you factory?
a: warmly welcome! once we have your schedule, we will arrange the professional engineers and salesperson to follow up your case.
q4: do you provide samples ? is it free or extra ?
a: available upon request.
q5: what is your terms of payment ?
a: tt b. western union c. lc d.upon request
q6. is it ok to print my logo on product?
a: yes. please inform us formally before our production and confirm the design firstly.
q7. why choose our company?
a: 1.we have 30 years working experience in railway and mining construction.
2. we have 31 professional engineers and 6 overseas office for better after-sales service .
