flat mine wagon introduction
fixed mine wagon is suitable for underground mining, mining, along the underground tunnel and surface industrial site transportation equipment or other items.
1.load:2-18ton
2.track gauge:600mm,900mm
3.wheel base:550/600/750/1000/1100 .
advantages:
1) high reliability
2) long service time
3) low operational costs
4) made by high quality steel
5)high stress area welds eliminated
6)mass and section thickness optimized
flat mine wagon details
 | model definition m : for coal mine p: flatted c: car/vehicle |
flat rail wagon features the frame is designed into metal structure, which can withstand the traction, the car collision between impact force and the rail. simple structure, durable, small resistance coefficient, large capacity, easy maintenance. reduces the impact of stress and increases the service life by adopting the car frame in welding structure. ensure operating smoothly no matter on curve or straight rail. |  |
 | flat rail wagon application to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production ; a stable yet moveable machine base. |
environment mpc series flat rail wagon is suitable for the underground mining, underground tunnel and industrial site surface transportation. |
|
flat mine wagon main parameter
fixe mine car model | mpc2-6 | mpc3-6 | mpc5-6 | mpc5-9 | mpc10-6 |
load capacity | 2 | 3 | 5 | 5 | 10 |
track gauge(mm) | 600 | 600 | 600 | 900 | 900 |
wheel base(mm) | 550 | 750 | 1100 | 1100 | 900 |
wheel diameter | 300 | 300 | 350 | 350 | 350 |
pull height | 320 | 320 | 320 | 320 | 230 |
allowed traction(kn) | 60 | 60 | 60 | 60 | 60 |
weight (kg) | 490 | 530 | 900 | 910 | 910 |
size (mm) | 2000*880*410 | 2400*1050*415 | 3450*1200*480 | 3450*1320*480 | 3460*1300*304 |

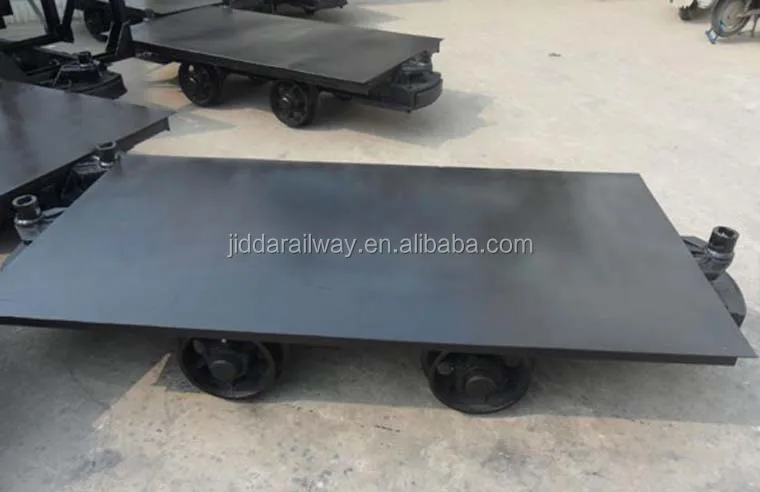

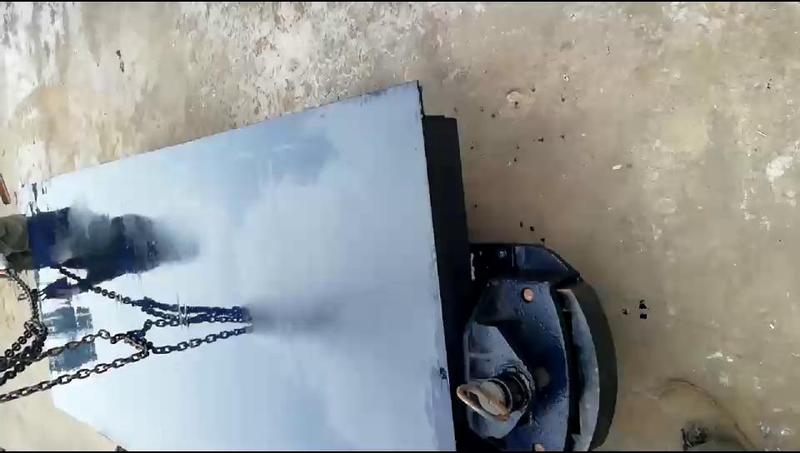

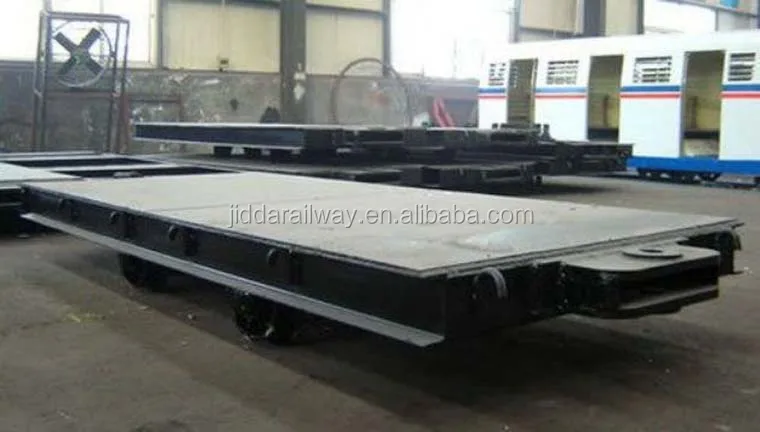

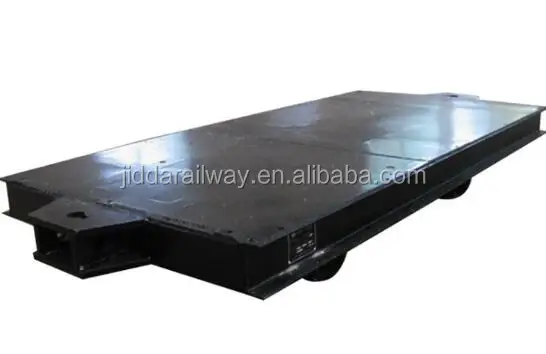

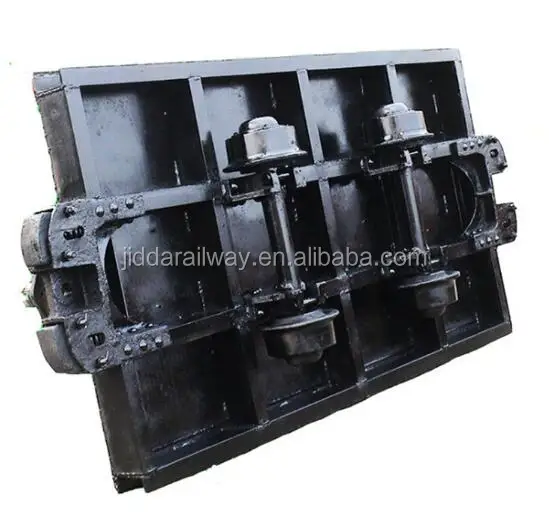

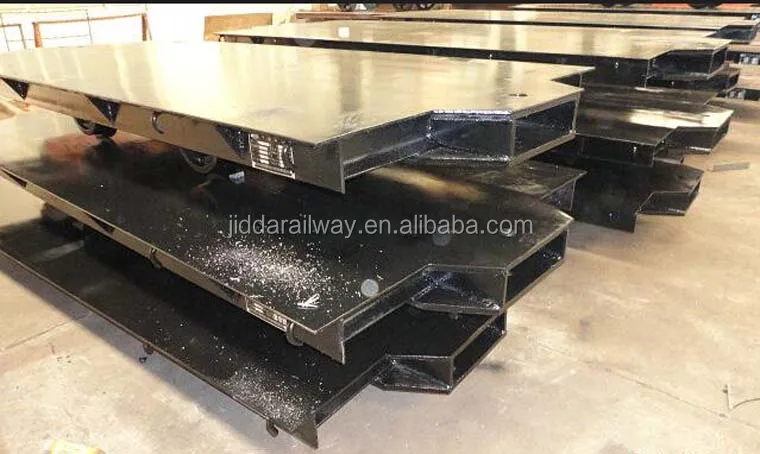

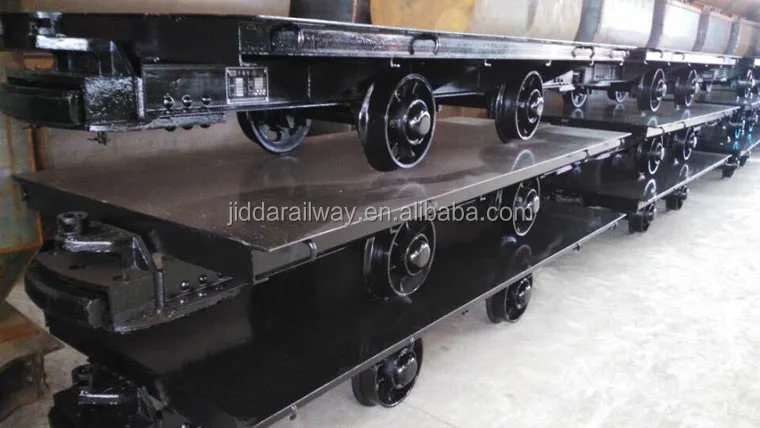

flat mine wagon figure photos
faq
q1: are you trading company or manufacturer ?
a: we are a manufacturere with 7 branch factories and 6 overseas offices.
q2: how long is your delivery time?
a: generally, within 15-25 days after deposit received.
q3: can we visit you factory?
a: warmly welcome! once we have your schedule, we will arrange the professional engineers and salesperson to follow up your case.
q4: do you provide samples ? is it free or extra ?
a: available upon request.
q5: what is your terms of payment ?
a: tt b. western union c. lc d.upon request
q6. is it ok to print my logo on product?
a: yes. please inform us formally before our production and confirm the design firstly.
q7. why choose our company?
a: 1.we have 30 years working experience in railway and mining construction.
2. we have 31 professional engineers and 6 overseas office for better after-sales service .
