material mine wagon introduction
mlc material supply mining convey car is used for underground mining car of mine roadway along the underground,
and ground industrial site supporting materials and other materials transportation. it has 600mm and 900mm track, 1/3/5 ton load for your choice.
material mine wagon details
 | model definition m: mining use l: material mine car g: mine car m: loading t m: gauge m: design version |
characteristics metal structure frame which can withstand the traction, self motivation, car collision between impact force and the rail. simple structure, durable, small resistance coefficient, large capacity, easy maintenance, reduces the impact of stress and increases the service life by adopting the car frame in welding structure , ensure operating smoothly no matter on curve or straight rail. |  |

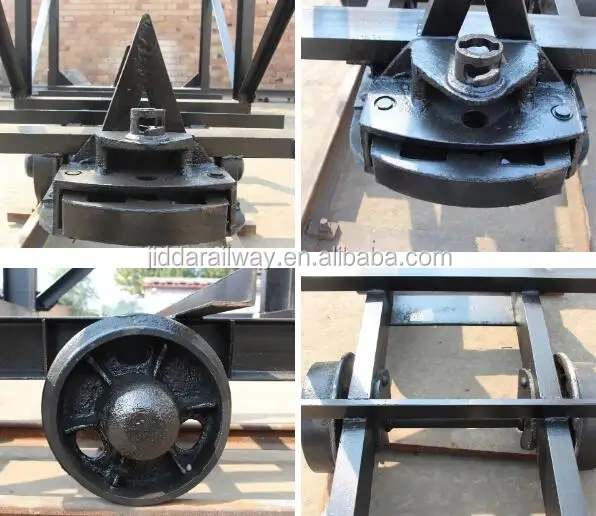

 | material mine wagon structureit mainly consists of frame, buffer, wheel set (open wheel set, closed wheel set), connection device etc. |
working principlescraper conveyor is used as the bottom plate of material truck box. when loading, the front end of the truck is filled first. the conveyor gradually moves the loaded material to the back end, filling the truck continuously and unloading it by the conveyor. |
|

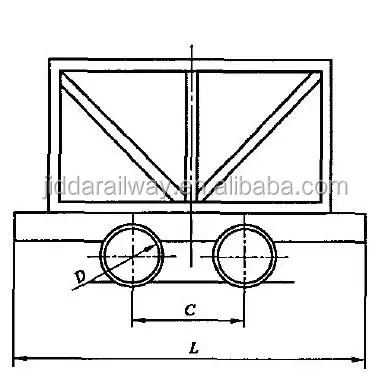

material mine wagon main parameter
mine material car model | mlc2-6 | mlc3-6 | mlc5-6 | mlc5(3)-9 | mlc3-9 |
loadage(t) | 2 | 3 | 5 | 5 | 3 |
track gauge(mm) | 600 | 600 | 600 | 900 | 900 |
contour dimension(mm) | 2000*880*1150 | 1050*1200*1200 | 3450*1200*1200 | 3450*1230*1200 | 2100*1150 *1300 |
wheel base(mm) | 550 | 750 | 1100 | 1100 | 900 |
wheel diameter | 300 | 300 | 350 | 350 | 350 |
heigth of towing attachment(mm) | 320 | 320 | 320 | 320 | 320 |
allowed traction(kn) | 60 | 60 | 60 | 60 | 60 |
overall weight(kg) | 520 | 520 | 920 | 940 | 790 |

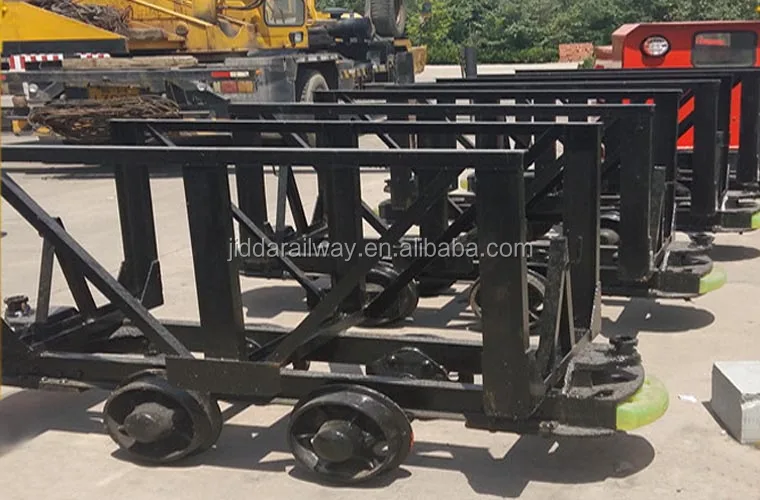

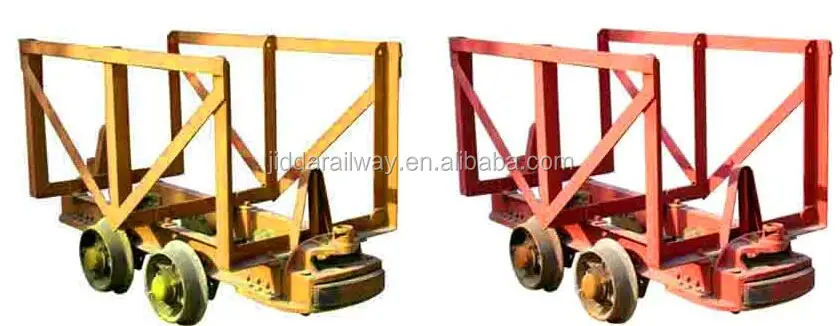

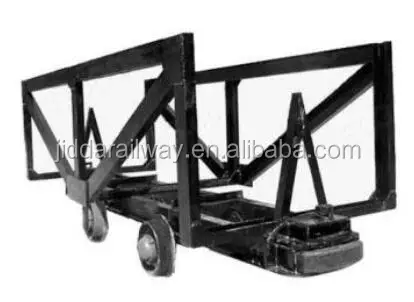

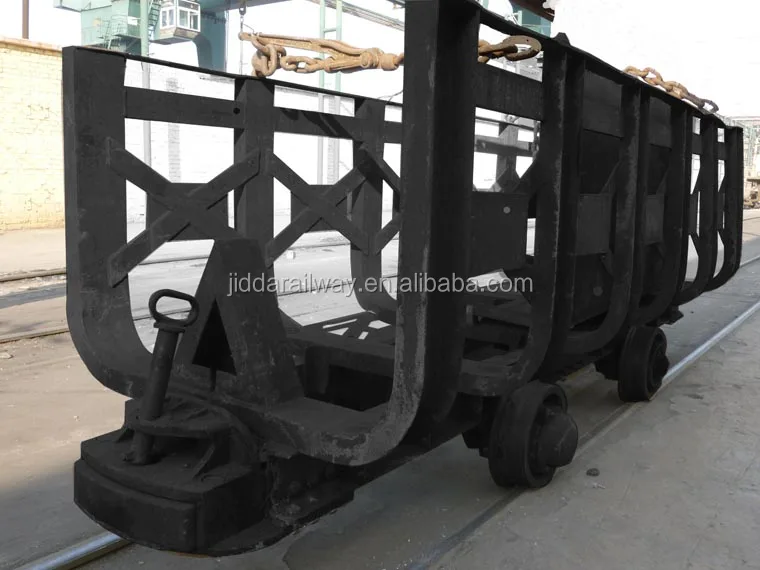

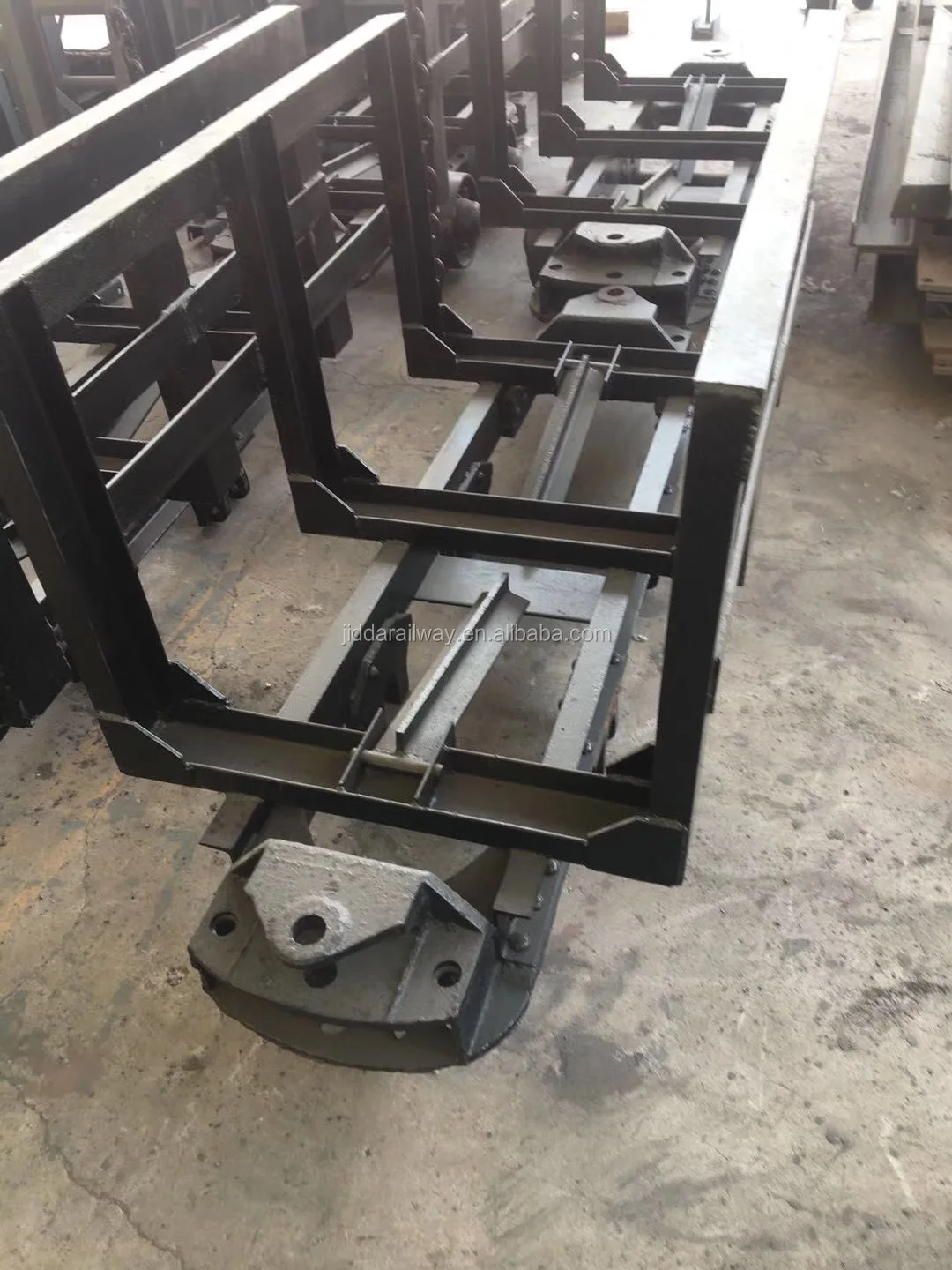

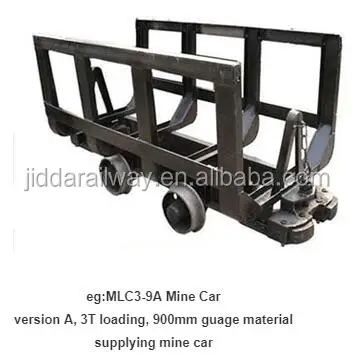

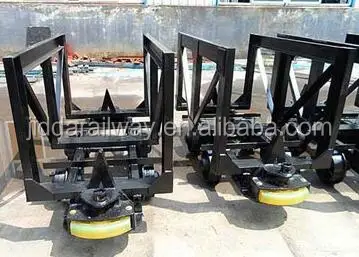

material mine wagon figure photos
faq
q1: are you trading company or manufacturer ?
a: we are a manufacturer with 7 branch factories and 6 overseas office.
q2: how long is your delivery time?
a: generally, within 15-25 days after deposit received.
q3: can we visit you factory?
a: warmly welcome! once we have your schedule, we will arrange the professional engineers and salesperson to follow up your case.
q4: do you provide samples ? is it free or extra ?
a: available upon request.
q5: what is your terms of payment ?
a: tt b. western union c. lc d.upon request
q6. is it ok to print my logo on product?
a: yes. please inform us formally before our production and confirm the design firstly.
q7. why choose our company?
a: 1.we have 30 years working experience in railway and mining construction.
2. we have 31 professional engineers and 6 overseas office for better after-sales service .
