1, rated track force: single cylinder 150 kn
duplex 150 kn x 2
2, lifting cylinder stroke: 800 mm ± 5 mm
3, rated lining force: 200 kn
4, lining quantity: >=160 mm
5, system working pressure: 16 mpa
6, manual pump operation force: 350 n
7, engine power: 9.5 kw
8, volume (lwh) : 2050 x 1050 x 1360
9, weight: 600 kg
spec
1, rated track force: single cylinder 150 kn duplex 150 kn x 2 2, lifting cylinder stroke: 800 mm ± 5 mm 3, rated lining force: 200 kn 4, lining quantity: >=160 mm 5, system working pressure: 16 mpa 6
model

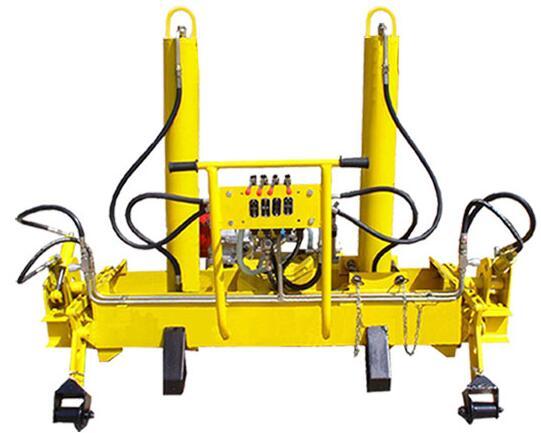

yqbj-300rail-lifting-lining-machine
